CP-UNC-DA21L3C-Q

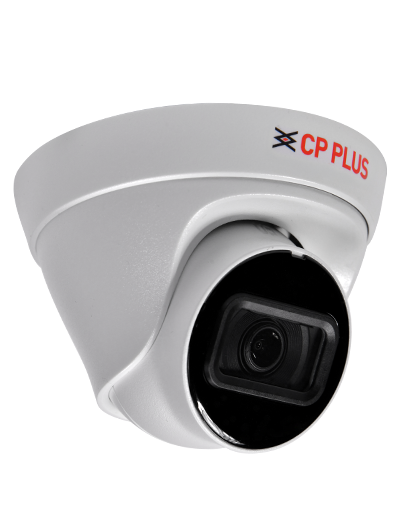

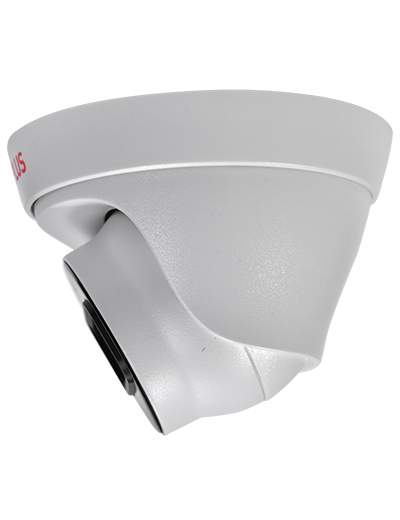

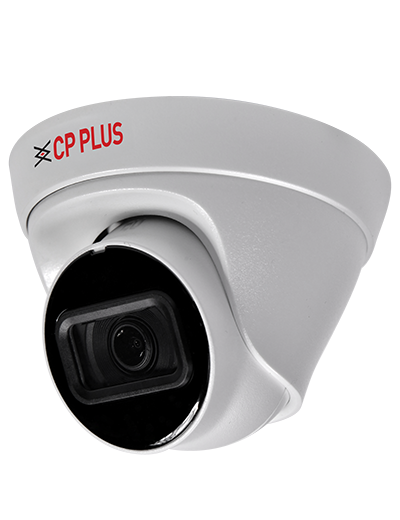

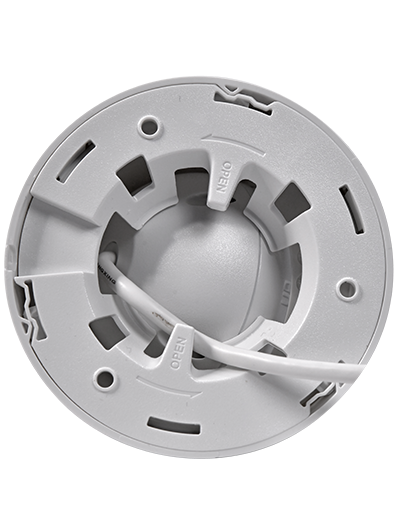

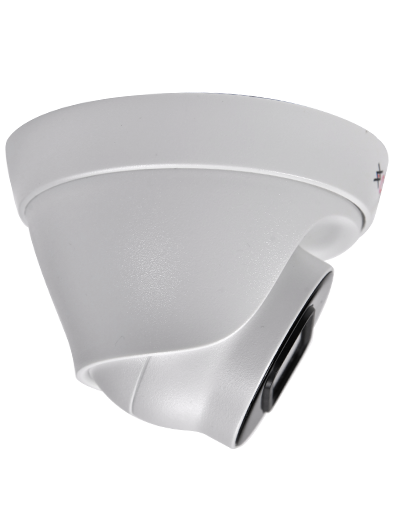

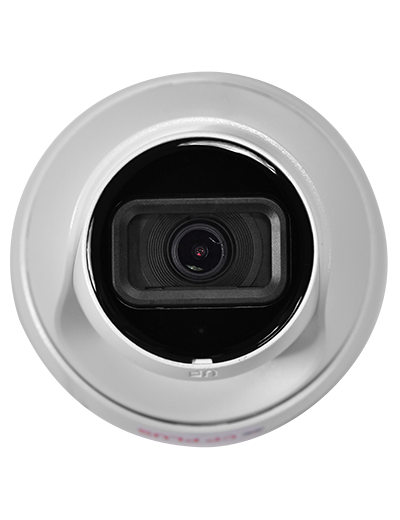

2MP Network IR Dome Camera - 30Mtr
Key Features
- 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters)
- Max. 2MP (1920 × 1080)@1–25/30fps
- Instastream, H.265, H.264, H.264H, H.264B, MJPEG
- Support Triple stream
- Support Built-in Mic
- 3.6mm Lens (2.8mm optional)
- DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
- IR Range of 30 Mtr., PoE, IP67
Contact Us
Contact for Best Price
Company owned by - Vaibhav Singh
Website created by - Dev Singh
Email: vaibhav1012005singh@gmail.com
Phone: +91-7459041530
Phone: +91-9871917412
2nd Floor, Tech Park,
New Delhi, India
Contact via WhatsApp
Website created by - Dev Singh
Email: vaibhav1012005singh@gmail.com
Phone: +91-7459041530
Phone: +91-9871917412
2nd Floor, Tech Park,
New Delhi, India
Product Description
2MP Network IR Dome Camera with 30M IR range. Equipped with 1/2.8" 2MP PS CMOS sensor for clear Full HD imaging. Supports advanced compression, triple streams, built-in mic, DWDR, 3D NR, and more. Perfect for indoor/outdoor use with IP67 protection and PoE for easy installation.
Full Specifications
| Image Sensor | 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters) |
|---|---|
| Effective Pixels | 1920 (H) × 1080 (V) |
| Minimum Illumination | 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| RAM / ROM | 128 MB / 128 MB |
| DORI Distance | Lens 3.6mm: Detect 52.4m, Observe 21.0m, Recognize 10.5m, Identify 5.2m Lens 2.8mm: Detect 45.5m, Observe 18.2m, Recognize 9.1m, Identify 4.6m |
| Gain Control (AGC) | Auto/Manual |
| Lens Type / Mount / Aperture | Fixed-focal / M12 / F2.0 |
| Lens | 3.6mm (2.8mm optional) |
| Close Focus Distance | 3.6mm: 0.9m, 2.8mm: 0.6m |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (sub stream only) |
| IR Range | 30 Mtr. (Smart IR support) |
| Day/Night | Auto(ICR)/Color/B/W |
| S/N Ratio | >56dB |
| Angle of view | 3.6mm: H:86°, V:47°, D:103° 2.8mm: H:101°, V:54°, D:119° |
| Back Light Compensation | BLC / HLC / DWDR |
| Stream Capability | Triple stream |
| Frame Rate | Main: 2MP (1920×1080)@1–25/30fps Sub1/Sub2: Various lower resolutions up to 30fps |
| Privacy Mask | 4 areas |
| Resolution | 2MP (1920×1080), 1.3MP, 720p, D1, VGA, CIF |
| Noise Reduction | 3D NR |
| Motion Detection / ROI | OFF/ON (4 areas) / Support (4 areas) |
| OSD | Camera title, Date & Time |
| Audio | Built-in Mic, Compression: G.711a/Mu, PCM, G.726, AAC |
| Bit Rate Control | CBR/VBR |
| Human Body Detection | Support (human & motor vehicle classification) |
| Protocol | SFTP, IPv4/IPv6, DNS, RTCP, NTP, RTP, HTTP/HTTPS, SNMP V3, TLS 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (S/G/T), unicast/multicast |
| SDK and API | Support |
| Ethernet | RJ-45 (10/100 Base-T) |
| Smart search | With Smart NVR for intelligent event search |
| Alarm Event | Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD, Security exception |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
| IR Control | Auto, Manual |
| Image Rotation | 0°/90°/180°/270° (90°/270° with 2MP and lower) |
| Certificates | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC approved compliance report |
| Power Source / Consumption | 12 VDC / PoE (802.3af) Basic: 1.3W (12VDC), 1.6W (PoE) Max: 3.3W (12VDC), 4.2W (PoE) |
| Weatherproof Standard | IP67 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Dimensions / Weight | 85.5 mm × 109 mm / 250g |
| Casing | Metal + Plastic |
Downloads
Customer Reviews
"Excellent clarity in 2MP resolution. IR 30m works perfectly for my shop entrance at night. Easy PoE setup." – Raj K., Gurugram ★★★★★
"Built-in mic is a big plus for audio monitoring. DWDR handles backlight well. Solid build quality." – Priya S., Delhi ★★★★☆
"Value for money CP PLUS model. Human detection reduces false alarms significantly." – Amit P., Noida ★★★★★
